Peptide injection sites — what published protocols specify.

Trial protocols and approved-drug labels name the depot sites they used, and they say to rotate between them. This page reports those specifications and the pharmacology behind them. The compounds discussed here are research-use-only reagents; we do not publish administration instructions.

WTBP Research Team August 2026 7 min read 7 cited sources

Almost everything written about peptide injection sites is somebody describing their own routine. There is a documented version of this subject, and it is narrower and more interesting: the sites named in trial protocols and approved-drug labels, and the absorption data that explains why those documents bother to name them at all.

Protocols use three sites under the skin: belly, thigh, and the back of the arm. Approved GLP-1 labels name those three and say to rotate. Rotation is not about comfort. Reusing one site thickens the fat, which then absorbs at odd rates. In 430 insulin patients surveyed, 64.4% had that damage; among good rotators, 5%. Muscle protocols name other sites around nerves and vessels, and are clinical jobs. These vials are labeled not for human use. This page reports protocols, not one.

The reason a Phase III protocol names its injection site is that the site is a variable. Change it and you can change the absorption curve, which changes the exposure the trial is actually measuring. So the site gets written down, fixed, and rotated on a schedule — the same way a diluent or a storage temperature gets written down.

That makes the published record genuinely informative here, and it makes almost everything else on the topic guesswork. What follows is the documented part, with the sources attached.

Which sites do published peptide protocols use?

For subcutaneous delivery, three. The Mounjaro prescribing information specifies subcutaneous injection into the abdomen, thigh or upper arm, with sites rotated at each dose. The Zepbound label carries the same three. So does the broader incretin literature that the peptide research market takes its reference points from.

The tirzepatide labels state that exposure is comparable across the three sites. That is a useful and often-misread finding: it means the label treats them as interchangeable for the approved product at approved doses, not that site is irrelevant in general. Insulin, delivered at much smaller volumes and on a much tighter time course, shows the opposite — site-to-site differences that matter clinically.

Does the injection site change absorption?

Yes, and by how much depends on the molecule. Two things vary between sites: local blood flow, and the depth and composition of the subcutaneous layer above the muscle.

For rapid-acting insulin, the difference is large enough that injection technique guidance treats site as a clinical variable. The FITTER recommendations, drawn up by 183 diabetes specialists from 54 countries and published in Mayo Clinic Proceedings, are built around exactly this: needle length, depth, and site consistency, because getting any of them wrong moves the absorption curve.

For the long-acting acylated peptides — the tirzepatide and semaglutide class — the picture flattens out. An albumin-binding acyl chain creates a slow-release depot that dominates the absorption profile, so local perfusion differences get absorbed into a curve measured in days rather than minutes. That is why their labels can call the three sites comparable.

Injection site rotation, needle length and injection depth are not incidental details of insulin therapy. They are determinants of absorption, and inconsistency in any of them produces variability that is routinely mistaken for a dosing problem.

— Summarizing the FITTER expert recommendations, Mayo Clinic Proceedings, 2016

The practical reading for anyone working from published data: the site is part of the protocol, and a result generated at one site is evidence about that site. The general principle is the same one that governs route selection — the evidence attaches to the conditions it was generated under.

BPC-157 research vial

BPC-157

Tissue Repair
Pentadecapeptide 15 aa RUO labeled

A representative lyophilized research vial. Lab-verified identity, third-party COA matched to the lot, U.S. domestic fulfillment.

Shop BPC-157

Why do protocols rotate injection sites?

Because not rotating produces lipohypertrophy, and lipohypertrophy corrupts the data before it corrupts anything else.

Lipohypertrophy is a thickening of subcutaneous fat at a repeatedly used site. Blanco and colleagues examined the injection sites of 430 insulin-injecting outpatients and found it in 64.4% of them. The association with technique was not subtle. Of the patients who rotated sites correctly, 5% had lipohypertrophy. Of the patients who had it, 98% either did not rotate or rotated incorrectly.

The consequence is absorption that no longer matches the protocol. In the same cohort, 49.1% of patients with lipohypertrophy showed glycaemic variability, against 6.5% of those without it. Unexplained hypoglycaemia followed the same split. Delivering an accurately measured quantity into thickened tissue produces an inaccurate exposure, and nothing upstream of the site can compensate for that.

Where this falls short: the lipohypertrophy evidence base is an insulin evidence base. It is the largest and cleanest body of data on what repeated same-site subcutaneous delivery does to tissue, and the tissue mechanism is not insulin-specific — but the frequencies come from a population injecting several times a day for years. A once-weekly acylated peptide is a different exposure pattern, and nobody has published the equivalent survey for it.

Where do intramuscular protocols place the injection?

Different sites, chosen against different constraints. Clinical protocols name the deltoid, the vastus lateralis of the thigh, and the ventrogluteal region, and they name specific anatomical landmarks within each because the surrounding nerve and vascular structures leave a narrow margin.

That is the substantive difference between the two routes at site level. Subcutaneous site selection is about absorption consistency. Intramuscular site selection is about anatomy, and getting it wrong has consequences that have nothing to do with pharmacokinetics. It is a clinical procedure performed by trained personnel, and the published protocols that use it are staffed accordingly.

Intramuscular delivery is uncommon in the peptide literature anyway, for the reason set out in the route comparison: most peptide therapeutics are engineered for a slow subcutaneous depot, and faster absorption defeats the chemistry.

How much volume does one site take?

Published subcutaneous limits sit around 1–1.5 mL per site for adult abdomen and slightly less for thigh and upper arm. Above that, swelling and altered absorption kinetics set in, which is why protocols needing more volume split the delivery across sites.

This runs straight back into the reconstitution step, and it is the part most people get backwards. The diluent volume chosen at reconstitution fixes the concentration, and the concentration fixes how much liquid a given quantity occupies. A 10 mg vial in 2 mL gives 5 mg/mL, so 1 mg is 0.2 mL. The same vial in 10 mL gives 1 mg/mL, and the same 1 mg is now a full millilitre — at the per-site ceiling before anything else has gone wrong.

The peptide calculator works that chain in both directions: vial mass and diluent volume to concentration, then concentration to draw volume in U-100 syringe units. It is worth running before the diluent goes in rather than after.

Use a new needle and a new syringe for every access. Once a syringe or needle has entered a vial or solution, it is contaminated, and reusing it risks transmitting infection.

— Summarizing the CDC’s safe injection practice guidance, One Needle. One Syringe. Only One Time.

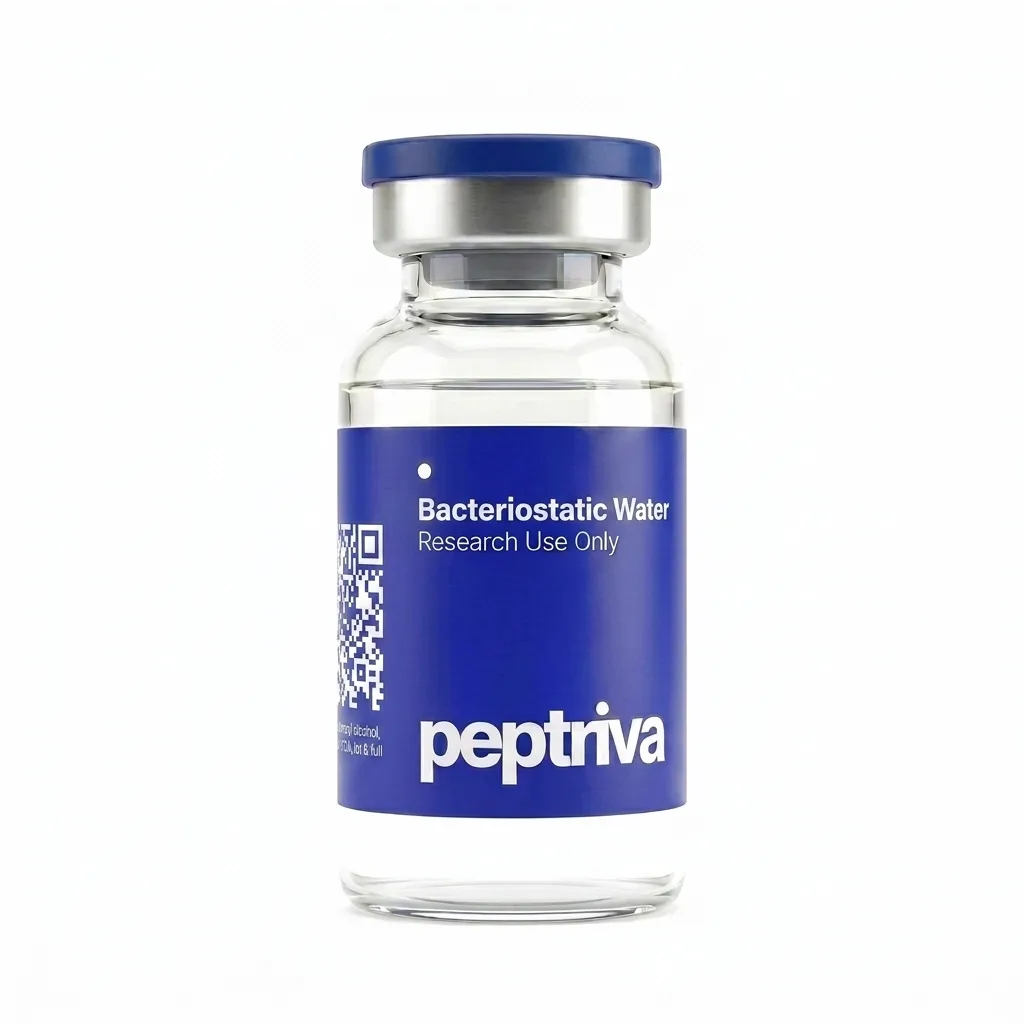

Bacteriostatic water research vial

Bacteriostatic Water

Reconstitution Diluent
0.9% benzyl alcohol Multi-dose vial 28-day in-use window

Sterile water with 0.9% benzyl alcohol — the diluent that sets the concentration every volume figure on this page depends on. One bottle reconstitutes several vials.

Learn more

Do any of these site rules apply to research-use-only material?

Not as instructions, no. This is the point the rest of the page is built around, so it is worth stating without hedging.

Research-use-only peptides are sold under 21 CFR § 809.10(b)(9) and carry the label “For Research Use Only. Not for human or veterinary use.” That statement is a regulatory category, not a formality: it is the seller declaring the limit of what was sold. The sites above come from approved-drug labels and clinical trial protocols, where an approval and a research ethics framework exist. Neither transfers to a research reagent, and we set out why on the legal position page.

What to know now

What we’re watching

Two things. First, whether anyone publishes a lipohypertrophy survey for the once-weekly acylated peptides — the entire tissue-effect evidence base is currently borrowed from a population injecting several times a day, and the exposure pattern is not the same. Second, the oral incretin programs. If an orally available GLP-1-class compound clears Phase III, the site question stops being a question for that class entirely, and the published protocols this page reads will stop being generated.

References

  1. U.S. Food and Drug Administration. (2022). Mounjaro (tirzepatide) injection, for subcutaneous use — Prescribing Information. NDA 215866. accessdata.fda.gov/drugsatfda_docs/label/2022/215866s000lbl.pdf
  2. U.S. Food and Drug Administration. (2023). Zepbound (tirzepatide) injection — Prescribing Information. NDA 217806. accessdata.fda.gov/drugsatfda_docs/label/2023/217806s000lbl.pdf
  3. Frid, A. H., Kreugel, G., Grassi, G., et al. (2016). New insulin delivery recommendations. Mayo Clinic Proceedings, 91(9), 1231–1255. https://doi.org/10.1016/j.mayocp.2016.06.010
  4. Blanco, M., Hernández, M. T., Strauss, K. W., & Amaya, M. (2013). Prevalence and risk factors of lipohypertrophy in insulin-injecting patients with diabetes. Diabetes & Metabolism, 39(5), 445–453. https://doi.org/10.1016/j.diabet.2013.05.006
  5. Jastreboff, A. M., Aronne, L. J., Ahmad, N. N., et al. (2022). Tirzepatide once weekly for the treatment of obesity. New England Journal of Medicine, 387(3), 205–216. https://doi.org/10.1056/NEJMoa2206038
  6. Centers for Disease Control and Prevention. (2024). Injection safety: One Needle. One Syringe. Only One Time. CDC Safe Injection Practices. cdc.gov/injectionsafety
  7. U.S. Code of Federal Regulations. (2024). 21 CFR § 809.10 — Labeling for in vitro diagnostic products. eCFR. https://www.ecfr.gov/current/title-21/chapter-I/subchapter-H/part-809/section-809.10
